Carbon Wrapping for Columns
Advanced Column Strengthening with Carbon Fibre
Carbon wrapping for columns is an advanced, non-invasive reinforcement method that improves the load-bearing capacity and lifespan of reinforced concrete structures. This technology offers structural stability, seismic resistance, and long-term durability.
At Gubbi Civil Engineers, we specialize in carbon fibre column strengthening for commercial, residential, and industrial buildings. This method is cost-effective, fast to implement, and ideal for modern construction challenges.
Why Choose Carbon Fibre Column Strengthening?
Using carbon fibre column strengthening helps to:
- Enhance load resistance
- Control corrosion and cracking
- Minimize structural deflection
- Reinforce columns under seismic conditions
- Extend service life of structures
Unlike traditional methods, carbon wrapping for columns offers minimal interference to existing structures, making it ideal for active buildings.
Carbon Wrapping for Columns Procedure
Our carbon wrapping for columns procedure uses high-performance materials and follows a precise, step-by-step method to ensure strong bonding and long-term structural stability:
- Surface Preparation: The concrete column surface is cleaned, ground, and prepared to remove dust, oil, and loose particles.
- Primer Application: high-adhesion primer is applied to create a bonding layer between the concrete and subsequent materials.
- Surface Leveling: Any cracks or uneven areas are filled and leveled using a compatible repair adhesive to ensure uniformity.
- Adhesive Coating: A specialized carbon fiber adhesive is applied over the primed surface to act as a bonding agent.

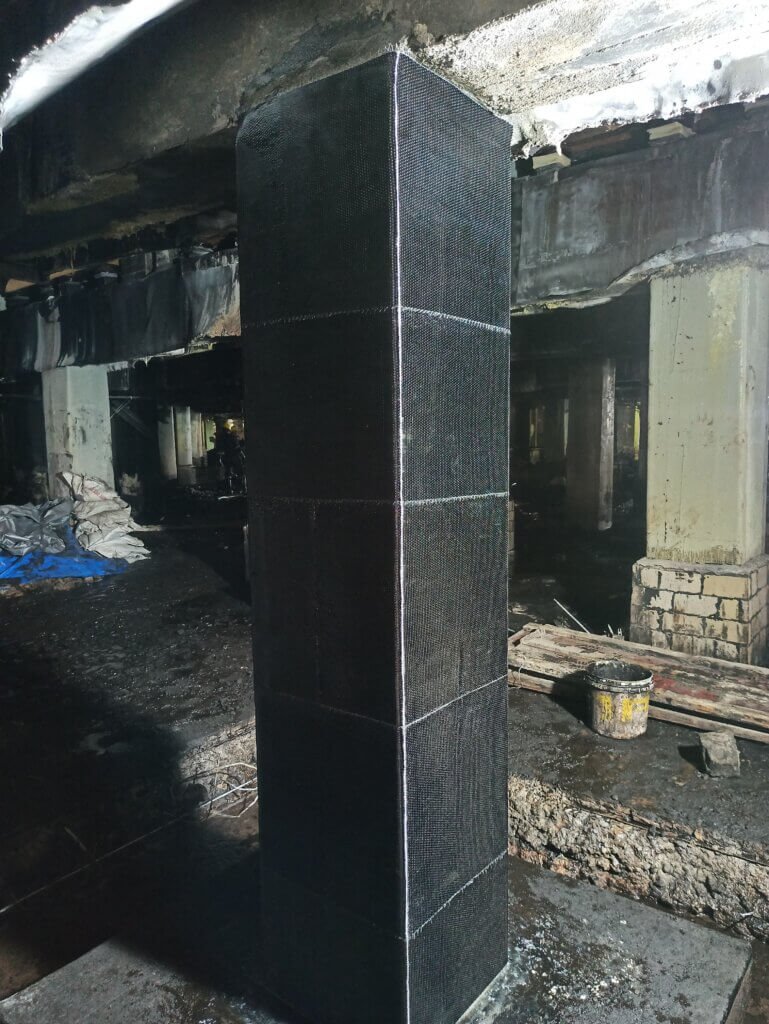

- Fiber Wrapping: A unidirectional carbon fiber wrap is externally bonded around the column to add tensile strength and stiffness.
- Final Coating and Curing: A final layer of adhesive is applied, and then the surface is left to cure properly for long-lasting protection and reinforcement.
This standardized carbon fibre wrapping of columns method ensures high durability, improved structural performance, and corrosion resistance. It is ideal for both new constructions and retrofitting aging buildings.
Carbon Wrapping for Columns Cost in India
The carbon wrapping for column costs in India varies based on multiple project-specific factors. Each structural strengthening project is unique, and the final cost depends on elements such as:
- The number and dimensions of the columns involved
- Type of carbon fibre column strengthening material used (fabric wraps or laminates)
- The complexity of the project, including load conditions and existing damage
- Accessibility to the site, which may impact the labour and equipment requirements
- Geographical location and environmental considerations
Due to these variables, cost estimation requires a detailed project evaluation. For customized solutions, expert guidance, and reliable implementation, trust Gubbi Civil Engineers—a leader in carbon wrapping for columns and structural reinforcement services across India.
For a detailed consultation and site-specific quote, get in touch with our team today.
Applications of Carbon Fibre Wrapping of Columns
Carbon fibre wrapping of columns is a proven solution for structural strengthening across a wide range of construction and rehabilitation projects. It enhances load-bearing capacity, protects against corrosion, and ensures long-term durability. Below are the key applications:
- High-Rise Structures: Essential for strengthening columns in multi-storey buildings, especially during vertical expansions.
- Commercial Building Upgrades: Used when converting or upgrading commercial spaces that demand enhanced structural support.
- Residential to Commercial Conversions: When load patterns change due to occupancy shifts, carbon fiber column wrap ensures safe load redistribution.
- Floor Additions in Bungalows: During vertical expansions, fiber-wrapping concrete columns enable the existing structure to support the added weight.
- Seismic Retrofitting: Crucial in earthquake-prone regions, carbon fiber wrap concrete columns improve ductility and seismic resistance.
- Industrial Structures: Perfect for strengthening columns exposed to high loads, machinery vibration, or frequent mechanical stress.
- Post-slab failure or Structural Deflection Repairs: If a slab fails or deflection occurs, carbon fibre column strengthening restores structural integrity quickly and efficiently.
- Corrosion Protection in Harsh Environments: In coastal or high-humidity areas, carbon wrapping for columns resists corrosion and environmental deterioration.
These applications clearly demonstrate the adaptability, reliability, and efficiency of carbon fibre wrapping of columns across varied structural scenarios.
Real-World Use Cases of Carbon Wrapping
- Adding Floors Above Stilt or First Floor: When new floors are constructed, base columns need reinforcement. Carbon fiber cloth-wrapped foundation columns are the most reliable solution.
- Seismic Protection: In earthquake-prone zones, carbon fiber wrap columns act as a safeguard by increasing ductility and strength.
- Post-Slab Defect Recovery: After slab casting, if columns fail to perform, wrapping them with carbon fibre can recover and enhance structural integrity.
- Change of Property Use: Upgrading a residential space to commercial increases loading, requiring reinforcement via carbon fiber column wrap.
- Industrial Load Reinforcement: Columns under high vibration and mechanical stress benefit from fiber wrapping concrete columns to reduce fatigue damage.
- Climate Resilience: In high-humidity or coastal regions, carbon fibre wrapping of columns prevents deterioration caused by weathering.
How Gubbi Civil Engineers Lead the Way
We at Gubbi Civil Engineers use industry-best practices for carbon wrapping for columns:
- Trained & certified technicians
- Premium HM-series adhesives and primers
- High-grade unidirectional carbon fibre wraps
- Customized approach for each project
- Transparent pricing with cost-effective solutions
As one of India’s most trusted names in carbon fibre column strengthening, we are committed to safety, speed, and strength.
Frequently Asked Questions
What is the lifespan of carbon fibre wrapping?
Typically, 30 to 50 years with minimal maintenance
Can this be used in occupied buildings?
Yes, the non-invasive process ensures minimal disruption.
Is carbon wrapping better than steel jacketing?
Yes, it’s lightweight, corrosion-resistant, and easier to apply.
