Glass Fiber Wrapping
Glass Fiber Wrapping for Structural Strengthening and Structural Repair
What Is Glass Fiber Wrapping?

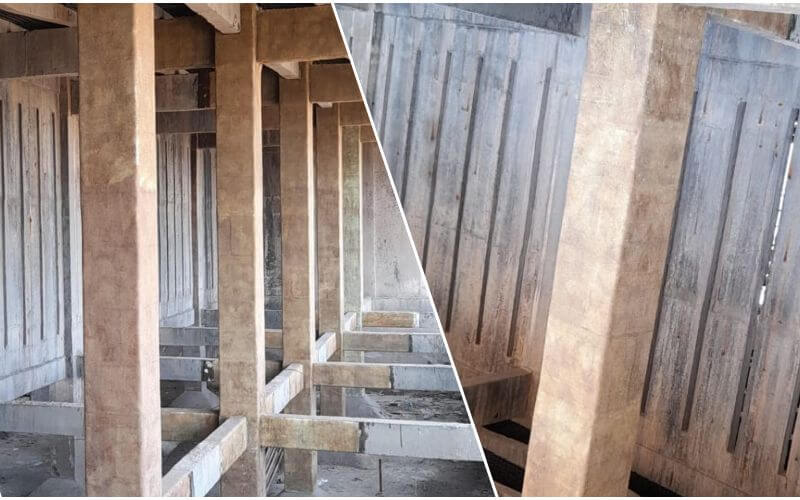

Glass Fiber Wrapping is a modern structural strengthening technique used to enhance the load-carrying capacity and durability of concrete columns. In this method, high-strength glass fiber sheets are bonded to the surface of RCC columns using specialized epoxy resins.
Once applied, the glass fiber wrap acts as an external reinforcement, confining the column and improving its resistance to axial loads, shear forces, and cracking. This technique strengthens the column without significantly increasing its size or weight, making it ideal for both repair and retrofitting of existing structures.
Why Glass Fiber Wrapping Is Required?
Over time, columns may lose strength due to aging, corrosion of reinforcement, poor construction quality, increased loading, or structural modifications. Cracks, spalling, and reduced load capacity can compromise safety if not addressed in time.
Glass fiber wrapping is required to:
- Restore and enhance structural strength of columns
- Control and prevent further crack propagation
- Improve ductility and seismic performance
- Protect reinforcement from environmental exposure
- Avoid heavy and space-consuming jacketing methods
It is a cost-effective, fast, and non-intrusive solution for strengthening columns in residential, commercial, industrial, and infrastructure projects.
Glass Fiber Wrapping Application Process
The application of glass fiber wrapping is carried out in a systematic manner to ensure long-lasting performance:
- Structural Assessment – Detailed inspection to determine strengthening requirements
Surface Preparation – Cleaning, crack repair, and surface leveling of the column
Resin Application – Application of epoxy bonding resin on the prepared surface
Glass Fiber Wrapping – Wrapping glass fiber sheets around the column as per design
Curing and Protection – Proper curing followed by protective coating if required
This controlled process ensures strong bonding, uniform confinement, and durable strengthening of the column.
Advantages Of Glass Fibre Wrapping
- Glass Fiber with multiple layers becomes ductile and aids in strengthening the rehabilitation and retrofitting of structures.
- They are cheaper and marginally less brittle than carbon fiber when used in structural composites.
- For the retrofitting of structures against seismic activity, Glass Fiber Reinforced Polymer or GFRP wrap acts as a shield.
- Glass fiber is lightweight and is available at the required length. Glass FRP wrapped concrete columns have the power of resistance against any chemical or factors that cause weathering.
- The Glass fiber reinforced polymer bonds between concrete and wrapping material it can significantly enhance the strength and become highly adaptable to concrete.
- The fiber also ensures an increase in the flexural & shear strength of structural members, hence causing no disturbance to other structural members like columns, beams, walls, floor decking, and roof decking.
- Glass fiber is an excellent agent of structural strengthening as it increases tensile strength and impact resistance.
- Such fibers are easy to adjust and fit existing components in a way that ensures structural strengthening.
