Sacrificial Anode Contractors
Sacrificial Anode Contractors for Long-Lasting Corrosion Protection
What Is a Sacrificial Anode?
A highly active metal alloy designed to protect a less active metal from corrosion. Because the anode corrodes instead of the protected metal, it is referred to as “sacrificial.” This controlled corrosion process significantly extends the service life of structural steel and reinforcement.
Principle of Cathodic Protection
Cathodic protection works by connecting an external anode to the metal that requires protection and allowing a direct current (DC) to flow. This process ensures that all areas of the protected metal surface become cathodic, thereby preventing electrochemical corrosion.
The external anode used in cathodic protection systems can be:
Galvanic (Sacrificial) Anodes, or Impressed Current Anodes, where current is supplied from an external DC power source.
The most commonly used metals include: Zinc, Aluminium, and Magnesium.
These metals have a more negative electrochemical potential than steel, allowing them to corrode preferentially and protect the primary structure.
How Sacrificial Anodes Prevent Corrosion in Structures?

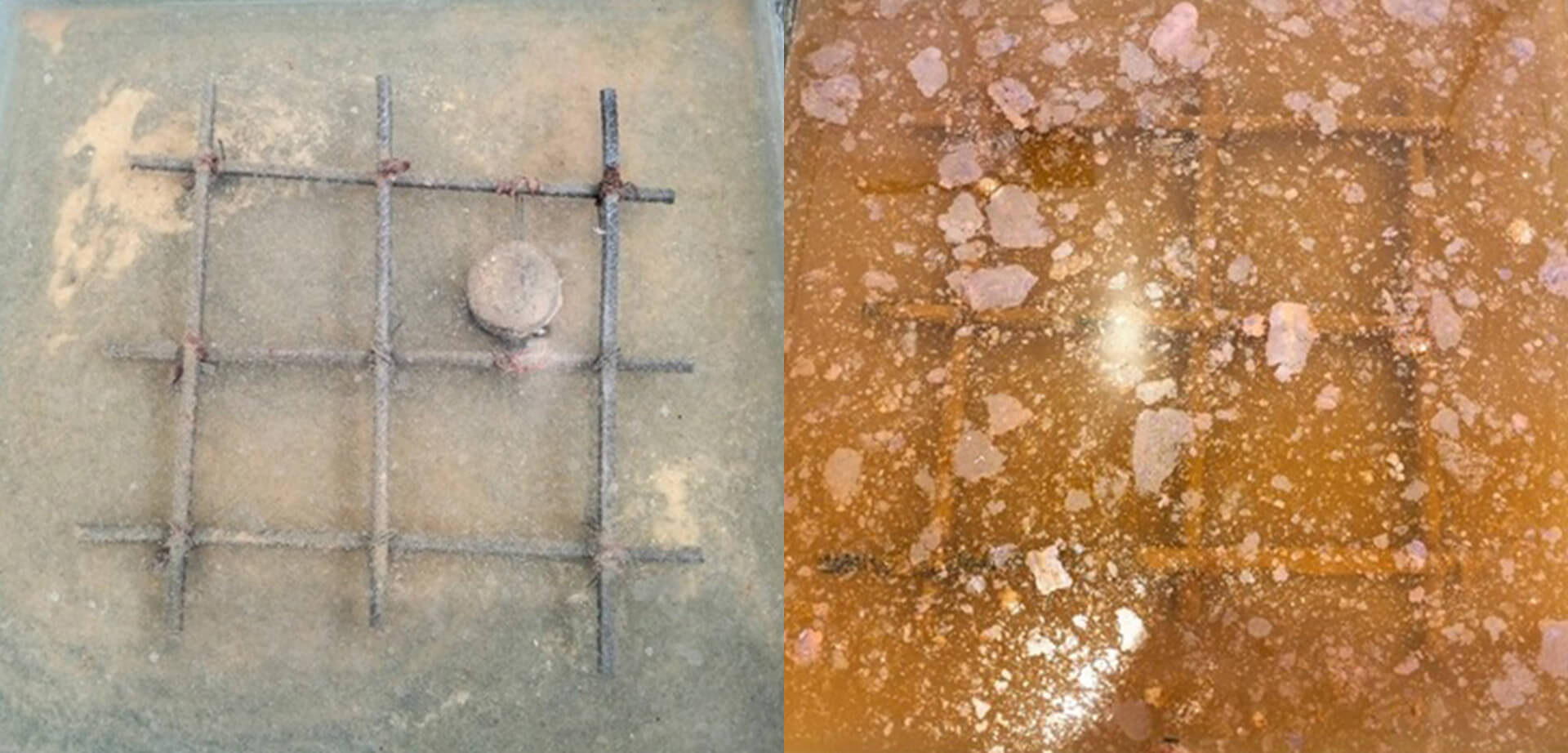

As illustrated in the images above, steel and iron materials are effectively protected from corrosion when sacrificial anodes are used as part of a cathodic protection system. In the first image, the reinforcement steel remains intact and structurally sound because the sacrificial anode corrodes in place of the steel, absorbing the corrosive action and preventing damage to the main structural element. This controlled corrosion process significantly slows deterioration and helps maintain the load-bearing capacity of the structure over time.
In contrast, the second image highlights what happens when sacrificial anode protection is not provided. The exposed steel undergoes continuous corrosion, leading to severe rusting, reduction in steel cross-section, cracking and spalling of surrounding concrete, and eventual structural weakening. Over time, this unchecked corrosion can result in costly repairs, reduced service life, and safety risks.
Using sacrificial anodes is a proven, cost-effective, and long-term solution for protecting reinforced concrete and steel structures from corrosion, enhancing durability, and ensuring structural safety.
Use of Sacrificial Anodes in Concrete Structures
They are widely used in reinforced concrete structures to prevent ongoing corrosion of embedded steel reinforcement, particularly in environments exposed to moisture, chlorides, and aggressive chemicals. Once installed or mechanically fastened to the reinforcement bars, the sacrificial anode is typically encased in alkali-activated mortar, which helps maintain a stable, high-alkaline environment around the steel and ensures efficient electrical continuity.
In this system, the zinc core gradually sacrifices itself, corroding preferentially and redirecting corrosive activity away from the reinforcement. As a result, the reinforcement steel remains protected, retaining its strength and load-bearing capacity. This controlled corrosion mechanism effectively halts further corrosion propagation, reducing the risk of cracking, spalling, and premature structural failure.
The method is especially effective in repair and rehabilitation works, as it integrates seamlessly with patch repairs and significantly extends the service life of existing structures without major disruption.
Protect Your Structure from Corrosion
Protect your structures from silent corrosion before it leads to costly damage. Our Sacrificial Anode Services deliver a proven, long-term solution to safeguard reinforced concrete and steel structures by stopping corrosion at its source. With expert installation, high-quality materials, and industry-proven cathodic protection techniques, we help extend structural life, improve safety, and reduce future maintenance costs. Whether you are planning a new project or rehabilitating an aging structure, our specialists provide reliable, efficient, and minimally disruptive solutions.
