Epoxy Injection Grouting

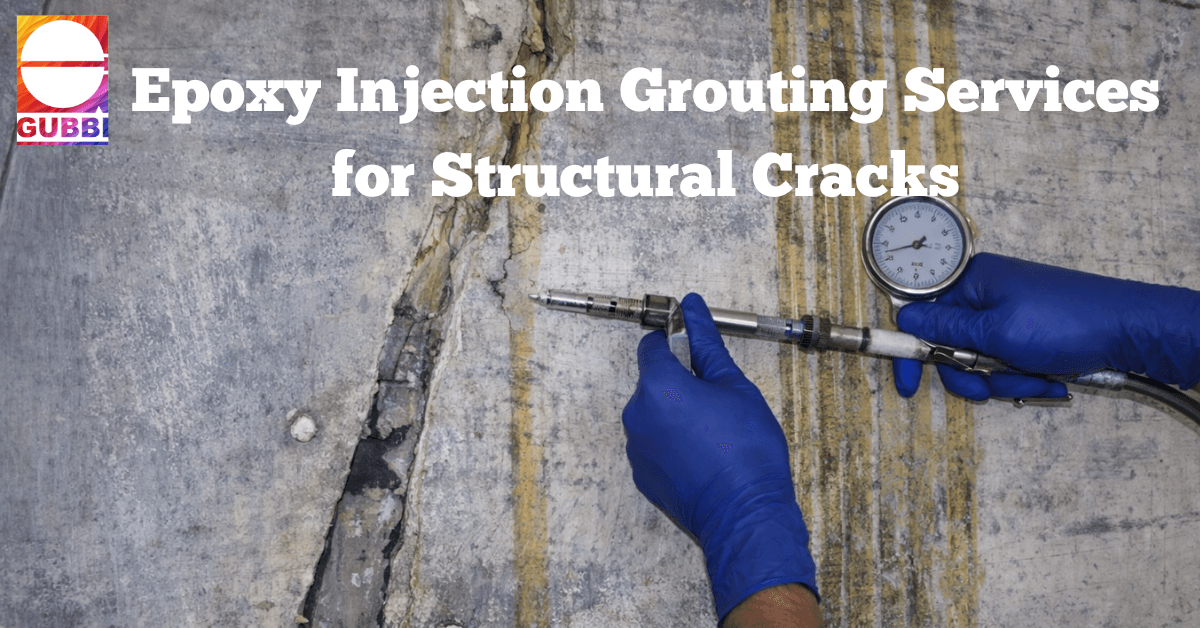

Epoxy Injection Grouting Services for Structural Crack Repair
What Is Epoxy Injection Grouting?
Epoxy Injection Grouting is a specialized structural crack repair technique used to restore the strength and integrity of cracked concrete elements. In this method, low-viscosity epoxy resin is injected under controlled pressure into cracks present in beams, slabs, columns, walls, and foundations. Once injected, the epoxy penetrates deep into the crack and bonds the concrete back together, effectively sealing the crack and restoring its original load-bearing capacity. This method is widely used for structural cracks where strength restoration is critical.
The method consists of a solvent-free base material called epoxy resin and a low viscosity liquid hardener. The method of epoxy injection grouting may take place with free flow under gravitational force or by injecting using a hand or mechanical pump.
This is by far the most effective method of repairing cracks in concrete structures. The process of epoxy grout is taken into consideration depending on the type of crack, its width and depth. Epoxy Injection grouting helps to fill the joints, cracks, and spaces between old piping and new pip
Step-by-Step Epoxy Injection Grouting Process

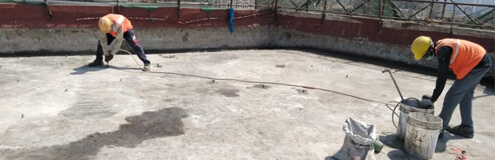

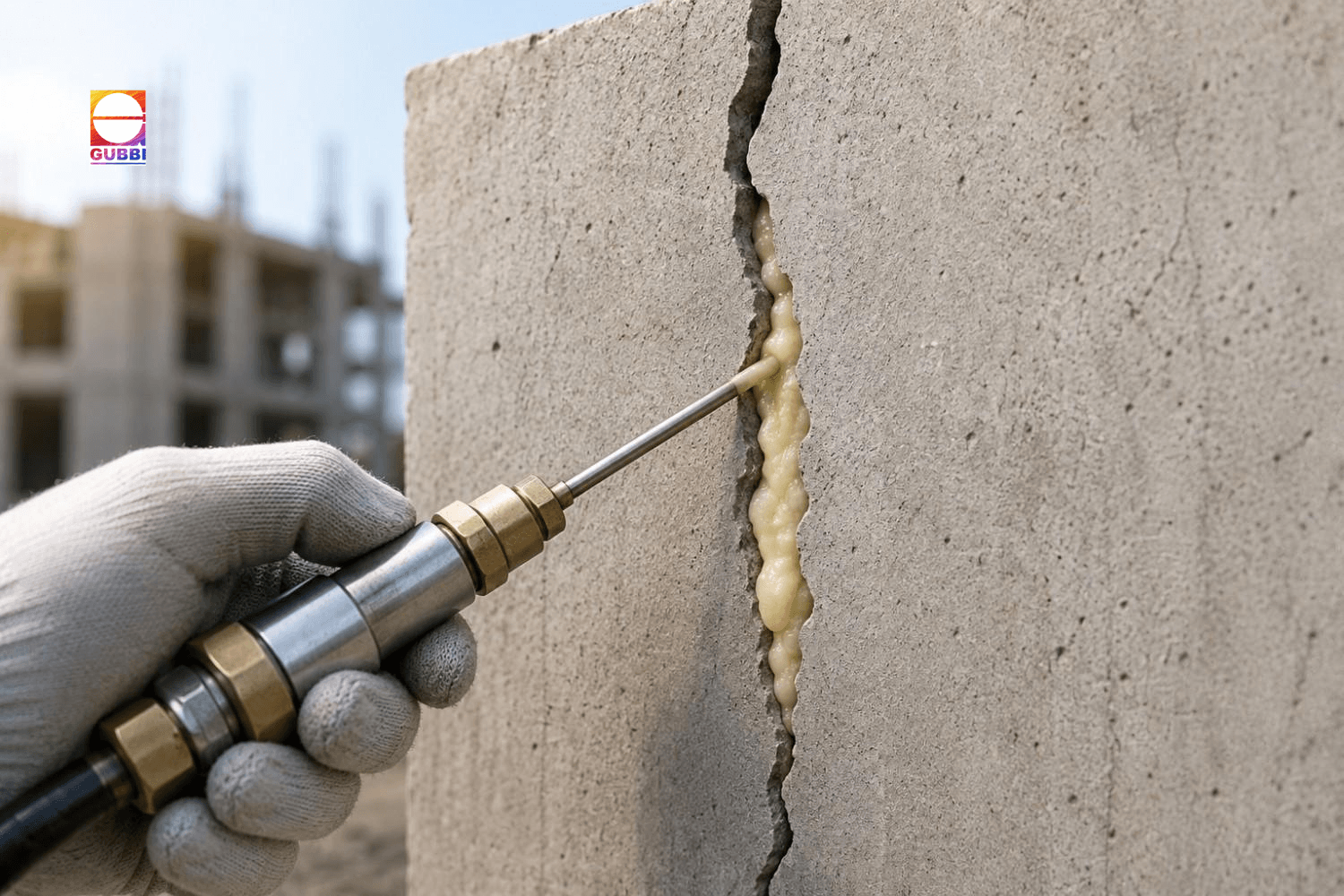

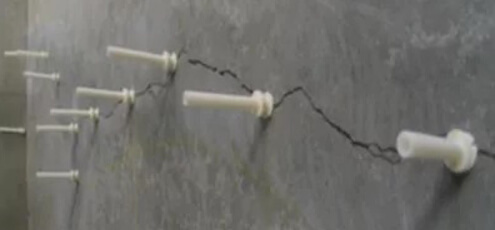

The process begins with a detailed crack inspection to identify crack type and width. The surface is then cleaned, and injection ports are fixed along the crack line. The crack surface is sealed using epoxy paste to prevent leakage. Next, epoxy resin is injected under low pressure, starting from the lowest port to ensure complete filling. After curing, ports are removed and the surface is finished to restore appearance.
Why Epoxy Injection Grouting Is Required?
Epoxy Injection Grouting is required when cracks compromise structural strength or allow water ingress. Untreated cracks can lead to corrosion of reinforcement, reduced durability, and progressive structural damage. This method provides a permanent repair solution by sealing cracks and restoring monolithic behavior of concrete members.
Key Benefits of Epoxy Injection Grouting
- This grouting is preferred owing to its quick setting and very low viscosity shrinkage.
- The epoxy grout method acts as an excellent adhesive and has high strength.
- The low viscosity of the epoxy injection grouting protects the formation of hairline cracks and provides good resistance to most chemicals.
- Epoxy grout is a waterproof method and is also known to entirely stain-resistant.
- It helps in filling and bonding cracked concrete.
- Epoxy grout act as structural support in areas where a grouting solution is required and where dynamic load resistance is required.
When to Choose Epoxy Injection Over Other Methods
It should be chosen when dealing with fine to medium structural cracks where strength restoration is essential. Unlike cement grouting, epoxy offers higher bonding strength, better penetration, and long-term durability, making it ideal for structural repairs rather than surface-level crack treatments.
Restore strength, safety, and durability with professional Grouting Services by Gubbi Civil Engineers. Get expert evaluation, precision repair, and long-lasting results.
