Epoxy Injection Services to Restore Structural Strength
Restore Structural Integrity with Gubbi Civil Engineers Limited®
Epoxy Injection Grouting is a proven method for repairing and sealing cracks in concrete structures. Whether it’s a high-rise building, a bridge, or an industrial facility, structural cracks can compromise the safety and durability of the asset. Gubbi Civil Engineers Limited® offers specialized Epoxy Injection Grouting services in India, helping clients restore strength, durability, and function to damaged concrete.
What is Epoxy Injection Grouting?
Epoxy Injection Grouting is a highly effective, pressure-based repair technique used to inject low-viscosity epoxy resin deep into cracks in concrete structures. Once injected, the epoxy penetrates the full depth of the crack and chemically bonds the separated concrete sections together, restoring the original structural integrity and load-bearing capacity. This method not only seals cracks permanently but also strengthens the affected area, preventing further deterioration. Epoxy injection grouting is an ideal solution for repairing structural cracks in beams, slabs, columns, and walls, offering long-lasting results without the need for major demolition or costly reconstruction.
Key Features:
-
- Strong adhesion to concrete surfaces
-
- High compressive strength
-
- Low shrinkage
-
- Excellent chemical and corrosion resistance
-
- Effective in sealing water-bearing cracks
When is Epoxy Injection Grouting Needed?
Cracks can form in concrete due to settlement, shrinkage, thermal expansion, or overloading. Epoxy Injection Grouting is ideal for:
-
- Load-bearing structural cracks
-
- Fine cracks (0.1 mm and above)
-
- Concrete beams, slabs, columns, and walls
-
- commercial, and industrial properties
Gubbi Civil Engineers Limited assesses every structure individually to determine the need and suitability of Epoxy Grouting techniques.
Gubbi Civil Engineers Expert in Epoxy Injection Grouting Services
Gubbi Civil Engineers Limited is a trusted and well-established name in civil repair and structural rehabilitation services across India. Backed by decades of hands-on experience and a highly qualified team of engineers and technical experts, we deliver reliable and precision-driven Epoxy Injection Grouting services for commercial buildings, industrial facilities, and MNC projects. Our solutions are carefully designed to repair structural cracks, restore load-bearing capacity, and enhance long-term durability while meeting the highest standards of quality, safety, and performance.
Our Advantages:
-
- On-site crack assessment and repair strategy
-
- Use of high-quality epoxy materials
-
- Trained application technicians
-
- Non-destructive methodology
-
- Quick turnaround and minimal downtime
We handle projects ranging from commercial repairs to major industrial retrofitting works.
Step-by-Step Process of Epoxy Injection Grouting
Surface Preparation
Clean the concrete surface and mark the crack locations.

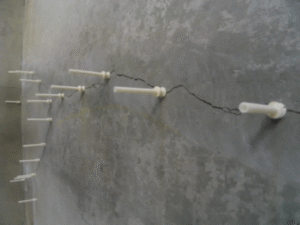

Installation of Injection Ports
Drill and fix ports along the crack path for epoxy injection.
Sealing the Surface
Use epoxy paste to seal the crack externally, leaving ports exposed.
Injection of Epoxy Resin
Inject low-viscosity epoxy under pressure to ensure deep penetration.
Curing and Monitoring
Allow the resin to cure and monitor the sealed surface for bonding confirmation.
This process ensures that even hairline cracks are permanently sealed.
Benefits of Epoxy Injection Grouting
-
- Strengthens Concrete: Restores original structural strength.
-
- Waterproofs Cracks: Prevents water seepage and corrosion.
-
- Cost-Effective: Cheaper than replacing or demolishing structures.
-
- Extends Life: Adds decades to the structure’s lifespan.
-
- Non-Intrusive: No need for major demolition or structural changes
Applications of Epoxy Grouting in Civil Structures
Gubbi Civil Engineers has successfully executed Epoxy Injection Grouting in:
-
- Commercial buildings
-
- Industrial warehouses
-
- Water tanks and retaining walls
-
- Parking structures and basements
-
- Hospitals and educational institutes
Our services are especially useful for retrofitting old buildings to comply with modern safety standards
Why Choose Gubbi Civil Engineers Limited?
-
- ISO-certified repair company with pan-India presence
-
- In-house engineering experts and skilled labor
-
- Modern equipment and materials
-
- 1000+ successfully completed projects
-
- Transparent costing and timely delivery
We specialize in structural repair, waterproofing, retrofitting, and epoxy grouting services delivering customized, high-performance solutions tailored to each client’s specific requirements, site conditions, and long-term durability goals.
