Slab Jacketing Techniques

Slab Jacketing Techniques for Durable Structural Strength

Structural elements like slabs often face deterioration due to age, environmental stress, heavy loads, or poor construction practices. Over time, this leads to visible cracks, deflection, and a reduction in load-bearing capacity. Slab jacketing has emerged as a reliable method for strengthening and restoring these damaged concrete elements. This technique is widely used in both commercial and industrial buildings for enhancing structural integrity without major demolition.

Understanding Slab Jacketing

By covering the existing surface with a fresh layer of high-performance material, typically micro-concrete or polymer-modified concrete, slab jacketing increases the cross-sectional area of an existing concrete slab. If necessary, reinforcement is applied. This composite portion increases the slab’s flexural and shear strength, boosts durability, and lengthens the structure’s service life. The technique is frequently used for retrofitting without making major changes.

When is Slab Jacketing Needed?

When there are indications of deterioration, such as cracks, sagging, corrosion of the reinforcement, or decreased load capacity, slab jacketing becomes crucial. Additionally, it is advised to follow seismic assessments or structural audits that reveal the necessity of reinforcement. Slab jacketing aids in performance restoration in commercial buildings, factories, hospitals, and schools while minimizing disruption to operational areas. For rehabilitation, it is better than replacing the entire slab, which is more expensive and time-consuming.

Common Techniques in Slab Jacketing

Slab jacketing can be implemented in a variety of methods, depending on the needs of the project:

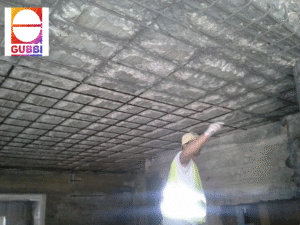

• • Bottom Jacketing: Usually reinforced with steel mesh or rebars, this technique is applied to the slab’s underside using formwork and micro-concrete.

• • Top Jacketing:  Used when surface access is available; reinforcement is added over the slab, and a new layer is poured.

• • Side Jacketing: For integrated reinforcing, sides can be jacketed in conjunction with beams when slabs are supported by them.

Materials Used in Slab Jacketing

The materials utilized have a significant impact on slab jacketing performance. For this, micro-concrete is frequently chosen since it flows readily and offers good bonding. Other options include corrosion inhibitors, epoxy-bonding agents, and mortars modified with polymers. For further strength, carbon fiber sheets or fiber-reinforced concrete are occasionally added. For optimal bonding and performance, all materials must be compatible with the current slab.

Structural Enhancement with Slab Jacketing

Slab jacketing’s ability to increase structural capacity without requiring demolition is one of its main advantages. The method reduces additional degradation, boosts flexural and shear strength, and redistributes stresses. It is particularly helpful in buildings that are being altered or reused for more demanding uses. For instance, turning office buildings into warehouses may require larger load-bearing slabs, in which case jacketing is a useful and affordable strengthening option.

Increased Durability and Longevity

Existing concrete’s durability is greatly increased by slab jacketing. It guards against further corrosion, chemical assault, and moisture intrusion by covering the damaged and exposed reinforcement. The jacket will work in unison with the existing slab if the right curing and bonding agents are used. Because of this, the restored slab requires little upkeep for decades, particularly in high-traffic or corrosive areas like parking lots or manufacturing facilities.

Compatibility with Other Strengthening Methods

Other structural rehabilitation methods like carbon fiber wrapping, column jacketing, or beam jacketing can be successfully integrated with slab jacketing. These technologies provide complete structural reinforcement when used in tandem. When it comes to adapting old structures or improving infrastructure such as flyovers, bridges, and metro stations, this synergy is very helpful. To satisfy modern building rules and performance standards, engineers frequently include these strategies.

Cost Efficiency and Time Savings

Jacketing is more affordable than replacing the entire slab. It lowers labour time, material consumption, and structural downtime. The procedure is speedier and cleaner because the original slab does not need to be demolished. Slab jacketing offers immediate operational benefits in projects where business continuity is crucial, such as retail establishments or medical facilities, by enabling minimal disruption to ongoing use of the space.

Minimal Disruption to Daily Operations

The fact that slab jacketing can frequently be done while the structure is still in use is one of its biggest benefits. Safety barriers can be used to segregate the work zone from above or below, preserving the functionality of other areas. Because of this, slab jacketing is perfect for commercial buildings that cannot afford extended closures, such as businesses, hotels, and schools. It’s the best option in terms of convenience and performance.

Applications across Industries

Slab jacketing is widely used in many industries:

• • Industrial Facilities: Reinforcing manufacturing floors that are subjected to vibration from machines or dynamic stresses.

• • Commercial Complexes: After redesigning, slabs are retrofitted for higher utility demand.

• • Hotels and hospitals: minimally disruptive structural repair.

• • Educational Institutions: Durable slab reinforcement with an emphasis on security.

• • Parking garages: upgrading slabs to resist weathering and vehicle loads

Because of its adaptability, it is a preferred method for both industrial and urban remodel projects.

Key Considerations before Implementation

Before installing slab jacketing, several issues need to be considered:

• • Analysis of structural loads

• • Corrosion levels and crack width

• • Strength of bond between new and ancient concrete

• • Details of reinforcement

• • The work zone’s accessibility

Long-term performance and successful execution are guaranteed by appropriate evaluation. The design and quality control of the jacketing process should always involve a professional structural consultant or civil engineering firm. For strengthening existing concrete slabs in a variety of constructions, slab jacketing is a tried-and-true, effective, and long-lasting solution.

It supports adaptive reuse without requiring significant demolition, increases structural capacity, and stops more deterioration. It remains a popular method for maintaining and improving contemporary infrastructure because of its advantages, which include reduced costs, less downtime, and increased safety. For businesses looking for non-invasive, long-term slab rehabilitation, slab jacketing provides unparalleled performance and value.
